1. General Information

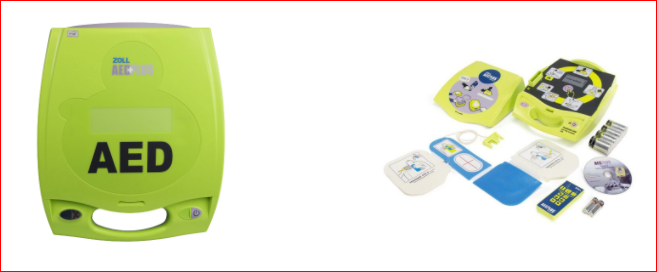

AED Zoll Plus is a product from Zoll Medical Corporation. ZOLL Medical Corporation, an Asahi Kasei Group Company, develops and markets medical devices and software solutions that help advance emergency care and save lives, while increasing clinical and operational efficiencies. With products for defibrillation and monitoring, circulation and CPR feedback, data management, therapeutic temperature management, and ventilation, ZOLL provides a comprehensive set of technologies that help clinicians, EMS and fire professionals, and lay rescuers treat victims needing resuscitation and acute critical care. AED ZOLL PLUS is the newest model. They also have 2 other models ZOLL PRO, ZOLL AED 3.
Besides, they also produced AED Trainer for training.


2. Detailed description
These following information are AED ZOLL PLUS specifications. You will get the best overview of the machine. At the same time, if you need to choose between different AED manufacturers, this is also an important basis.

Machine:
Size:  24,1 x 29,2 x 13,3 cm
Weight:  3,1 kg (battery included)
Power source: 10 replaceable lithium mangan dioxide battery, enough for 225 ± 5 defibrillators or 13 hours continuous monitoring. 5-year standby mode.

Environment:
Operation temperature: 0˚C to +50˚C
Humidity:  about 10% to 95%
Vibration: Anti-vibration standard MIL-STD-810F
Water and dust resistant standard:: IP-55

Defribilators
Biphasic Waveform: Rectilinear Biphasic
Energy Selection: Automatic pre-programmed selection
(Adult mode: 120J, 150J, 200J; Pediatric mode: 50J, 70J, 85J)
Heart Compression speed: 100 – 120 times/minute

Maximum time from first rhythm analysis to unit charged and ready to shock: With new batteries: 12 seconds. With batteries depleted by 15 200J discharges: 13 seconds
Maximum time from power on to unit charged and ready to shock at 200J: 22,6s

3. Highlights:
3.1. Graphic and voice guidance
When placed in an emergency situation, you will lose your temper very easily, which is dangerous for both you and the victim. If you have a machine to guide you through all the handling steps, you can completely give first aid to the victim quickly and correctly.
AED ZOLL PLUS is designed to give you a full set of first aid steps in accordance with the American Heart Association's (AHA) regulations and guidelines including: Response assessment, call support, airway check, heart compression and suffocation. It provides voice prompts and graphics so everyone can use.

3.2. CPR-D-padz
Cardiopulmonary resuscitation (CPR) is a very important first aid to a cardiac arrest victim, which helps the victim continue to have blood and oxygen flow to vital organs. Performing CPR immediately significantly increases the survivor's likelihood of survival, with each minute of delay will reduces the chance of survival from 7% to 10%. AED ZOLL PLUS integrates the press position locator with 2 electrode patches (CPR-D-padz). You just need to stick the electrodes in the correct position according to the instructions without wasting time.

3.3. Force sensor
When providing cardiopulmonary resuscitation (CPR) treatment to a victim of sudden cardiac arrest, it is vital the chest compressions are of a good quality. If the quality of the CPR provided is good, the chances of successfully resuscitating a patient are greatly increased.

Research has demonstrated that nonprofessional responders regularly provide ineffective CPR due to inexperience. The CPR-D-padz include a sensor that detects the rate and depth of CPR chest compressions. This sensor is placed (as part of the electrodes application) on the victim’s chest so that it is located between the rescuer’s hands and the victim’s lower sternum during chest compressions. When the rescuer performs CPR compressions, the sensor detects their rate and depth and sends the information to the Fully Automatic AED Plus unit. When used with CPR-D-padz, the Fully Automatic AED Plus monitors the depth and rate of CPR chest compressions. It provides a CPR metronome function designed to encourage rescuers to perform chest compressions at the AHA/ERC recommended rate of 100 compressions per minute (CPM) as well as voice and visual prompts to encourage a compression depth of 5 - 6 cm for adult victims.

4. Why choose Wellbeing?
Wellbeing distributes imported genuine equipment to you. Fully guarantee the following benefits:
• Receive notifications about device repair or recall defective products from the manufacturer
• Get a warranty from the manufacturer and make sure your warranty is covered
• Get full support and advice from Wellbeing and the manufacturer in case you have any questions or problems while using AED.
• Wellbeing doctors with medical expertise and knowledge of the AED machine can train your staff on how to use the machine in combination with other first aid skills.
