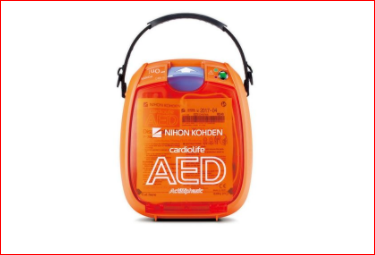

AED NIHON 3100
Doctor Luu Thi Minh Trang | Doctor/Trainer of First aid – First saved project from Wellbeing
AED stands for automated external defibrillator, is used to help those experiencing sudden cardiac arrest. This is an effective support device for cardiopulmonary resuscitation for the victim. It's a sophisticated, yet easy-to-use medical device. Wellbeing provide genuine AED with warranty from manufactures around the world and first-aid training service also. To choose the most suitable AED for your organization, take some time to find out some information. In this article, we will bring you some useful information about AED NIHON 3100.
AED stands for automated external defibrillator, is used to help those experiencing sudden cardiac arrest. This is an effective support device for cardiopulmonary resuscitation for the victim. It's a sophisticated, yet easy-to-use medical device. Wellbeing provide genuine AED with warranty from manufactures around the world and first-aid training service also. To choose the most suitable AED for your organization, take some time to find out some information. In this article, we will bring you some useful information about AED NIHON 3100.
1. General Information
AED Nihon 3100 is a product from Nihon Kohden. Nihon Kohden is a Japanese corporation operating in the field of development, manufacturing, sales, maintenance, and consulting of electronic medical equipment as well as systems and related products. Nihon Kohden is also the only company in Japan to develop and manufacture a 2-phase defibrillator AED for use in the community.
2. Detailed description
These following information are AED ZOLL PLUS specifications. You will get the best overview of the machine. At the same time, if you need to choose between different AED manufacturers, this is also an important basis.
Machine
Size: 20,6 x 25,2 x 9,7 cm
Weight: 2,3 kg (battery included)
Power source: Battery SB-310V, enough for 200 defibrillators or 7,5 hours continuous monitoring. 4-year standby mode.
Môi trường
Nhiệt độ: vận hành -5˚C đến +50 ˚C
Environment
Operation temperature: -5˚C to +50˚C
Humidity: about 10% to 95%
Vibration: Anti-vibration standard MIL-STD-810F
Water and dust resistant standard:: IP-55
Defribilators
Waveform: ECG ActBiphasic
Energy Selection: Automatic pre-programmed selection
(Adult mode: 150J - 200J; Children mode: 50J - 70J)
Heart Compression speed: 100 times/minute
Heartbeat Analyzing Speed: < 8 secs, minimum 4,5 secs
Maximum time from power on to unit charged and ready to shock at 200J: < 15 secs (with new battery)
3. Highlight
3.1. Convenient and Easy to use
Cardiopulmonary resuscitation (CPR) is a very important first aid to a cardiac arrest victim, which helps the victim continue to have blood and oxygen flow to vital organs. Performing CPR immediately significantly increases the survivor's likelihood of survival, with each minute of delay will reduces the chance of survival from 7% to 10%. Therefore, the sooner the victim receives assistance from the AED machine the better. AED should be easy and intuitive to use for anybody. Even if you are not a medical professional,
AED-3100 is ergonomic design for you to use it without doubt and interruption.
• Let’s start with 3 simple steps:
- Bước 1 : Open the lid to turn on the power.
- Bước 2: Attach the pads to the victim
- Bước 3: If the shock is needed, the shock button is flashing. Push the button to deliver the electrical shock to the patient.
If the victim is a child under 8 years old or weight less than 25 kg, you need to switch to child mode.
3.2. Electrode patch can be used for both adult and children
Children are not miniature adults. Children's parts are not as complete as adults, so it is not possible to use the same amount of energy to defibrate the heart as energy used in adults. For many other AED models, special electrodes for children will be required and you must replace electrodes before using them.
In the AED NIHON 3100, the same electrode patch will be used for all subjects. You only need to slide a small bar on the body of the machine to recharge the electric shock so that it is suitable for children.
3.3. Optimized heart rate analysis time
The AED NIHON 3100 has a built-in continuous heart rate analysis mode that can detect abnormalities more quickly. With this function, the victim's heart rate will be analyzed even during cardiopulmonary resuscitation (CPR) and electricity will be recharged before the device requests a shock. This minimizes the waiting time for electric shock as well as minimizes the interruption of CPR to increase the chances of saving the victim's life.
To make it easier to visualize, please see the diagram below to illustrate the CPR process combined with the AED machine below.
3.4. Mutiple languages
Medical equipment imported from abroad often has one disadvantage that limits the group of people who can operate the device: language. However, on the AED NIHON 3100 we provide, you can forget about this inconvenience because the machine has English, Japanese and Vietnamese. You can choose a language that suitable for your organization.
4. Why choose Wellbeing?
Wellbeing distributes imported genuine equipment to you. Fully guarantee the following benefits:
• Receive notifications about device repair or recall defective products from the manufacturer
• Get a warranty from the manufacturer and make sure your warranty is covered
• Get full support and advice from Wellbeing and the manufacturer in case you have any questions or problems while using AED.
• Wellbeing doctors with medical expertise and knowledge of the AED machine can train your staff on how to use the machine in combination with other first aid skills.
